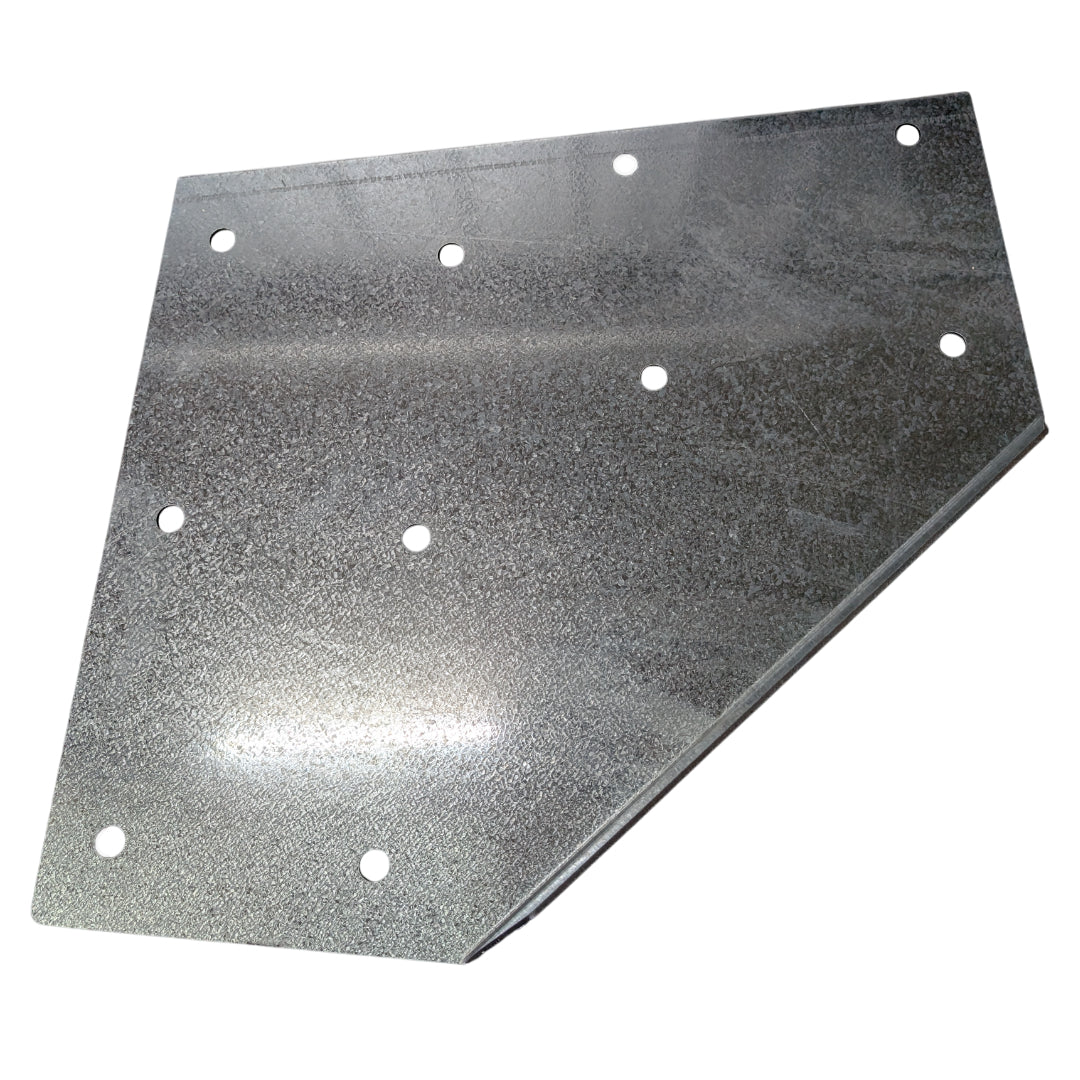

Haunch Shed Purlin Bracket - C100, C150, C200 & C250

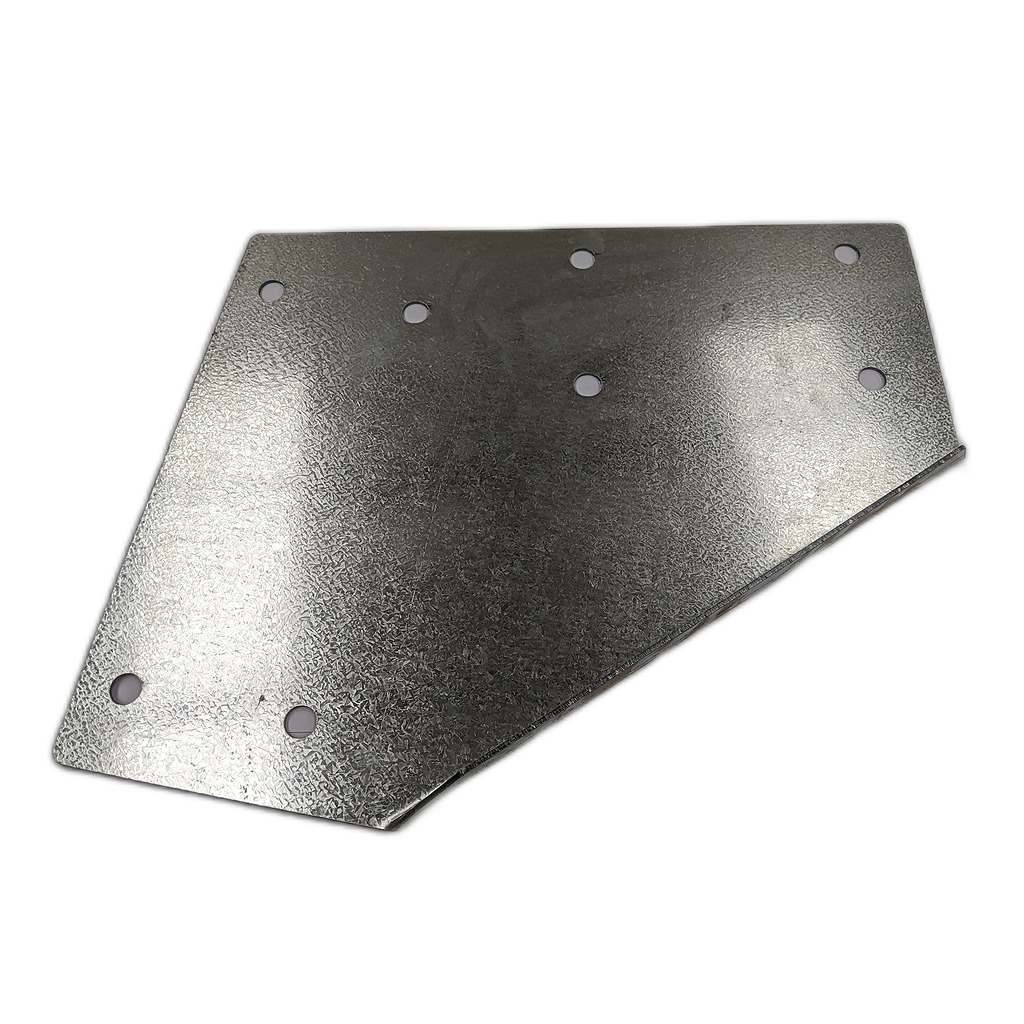

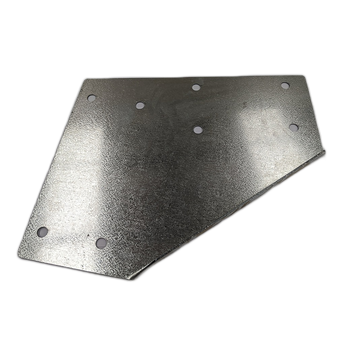

Haunch shed purlin brackets (3.0mm BTM) for sale in Perth, WA. Design to suit C150 to C150, C200 to C150, C200 to C200 and C250 to C200 connections from shed columns to rafters of gable sheds, with standard roof pitches of 11, 15, and 22 (custom pitches available upon request). The brackets are made from galvanised 3.0mm BTM G450 steel.

Column to Rafter Connections

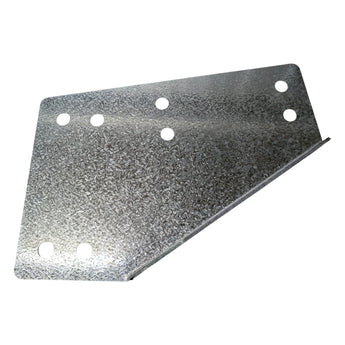

• C100 to C100

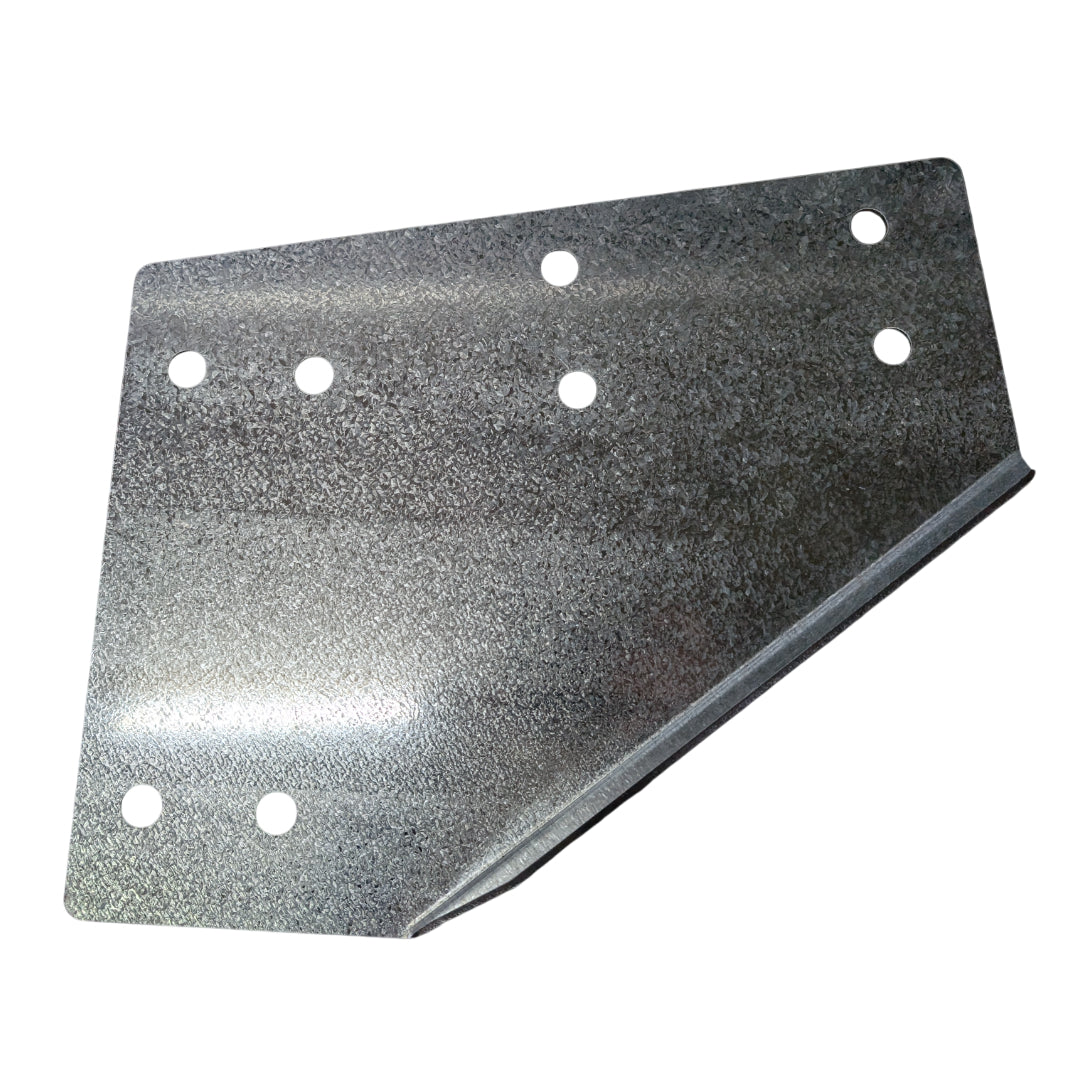

• C150 to C150

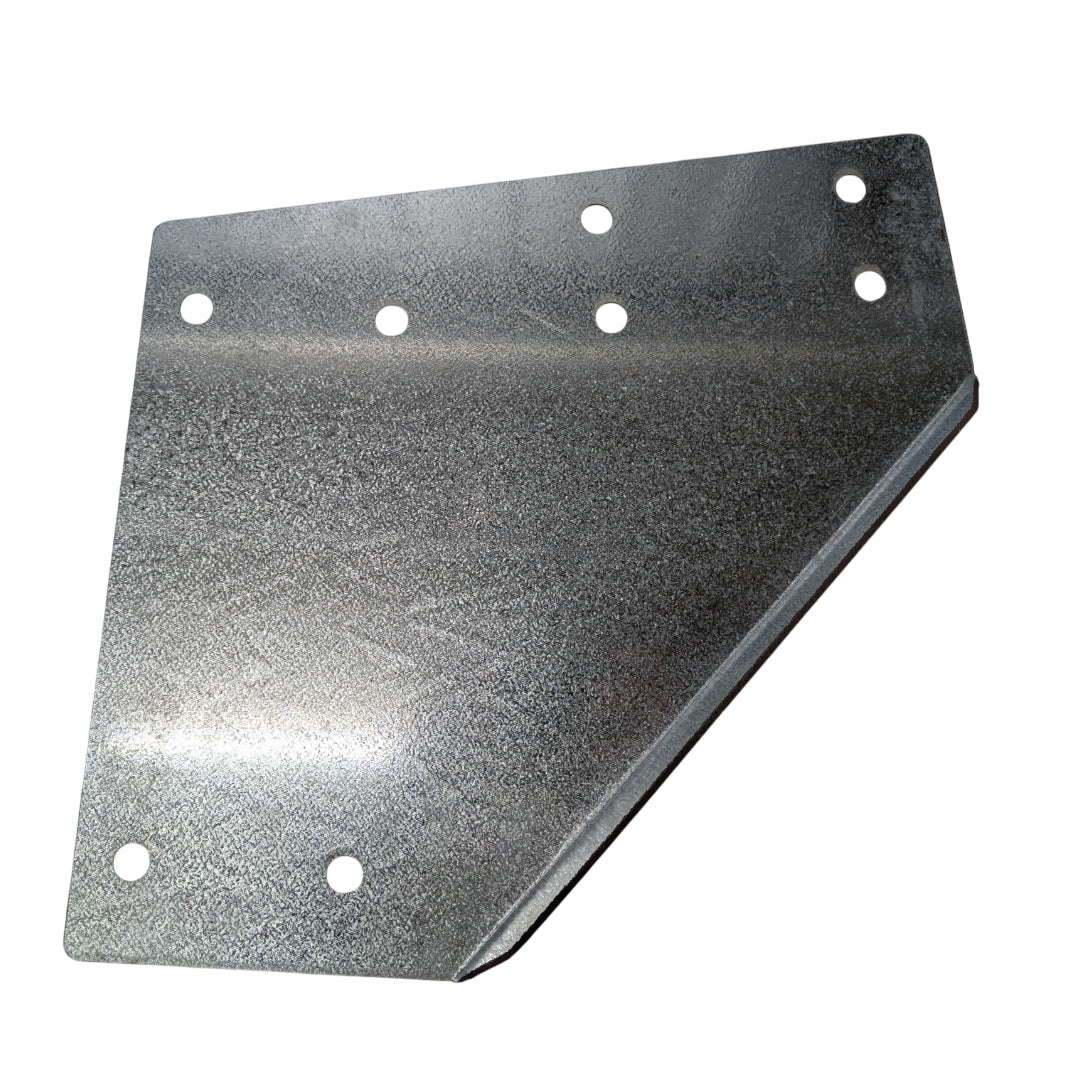

• C200 to C150

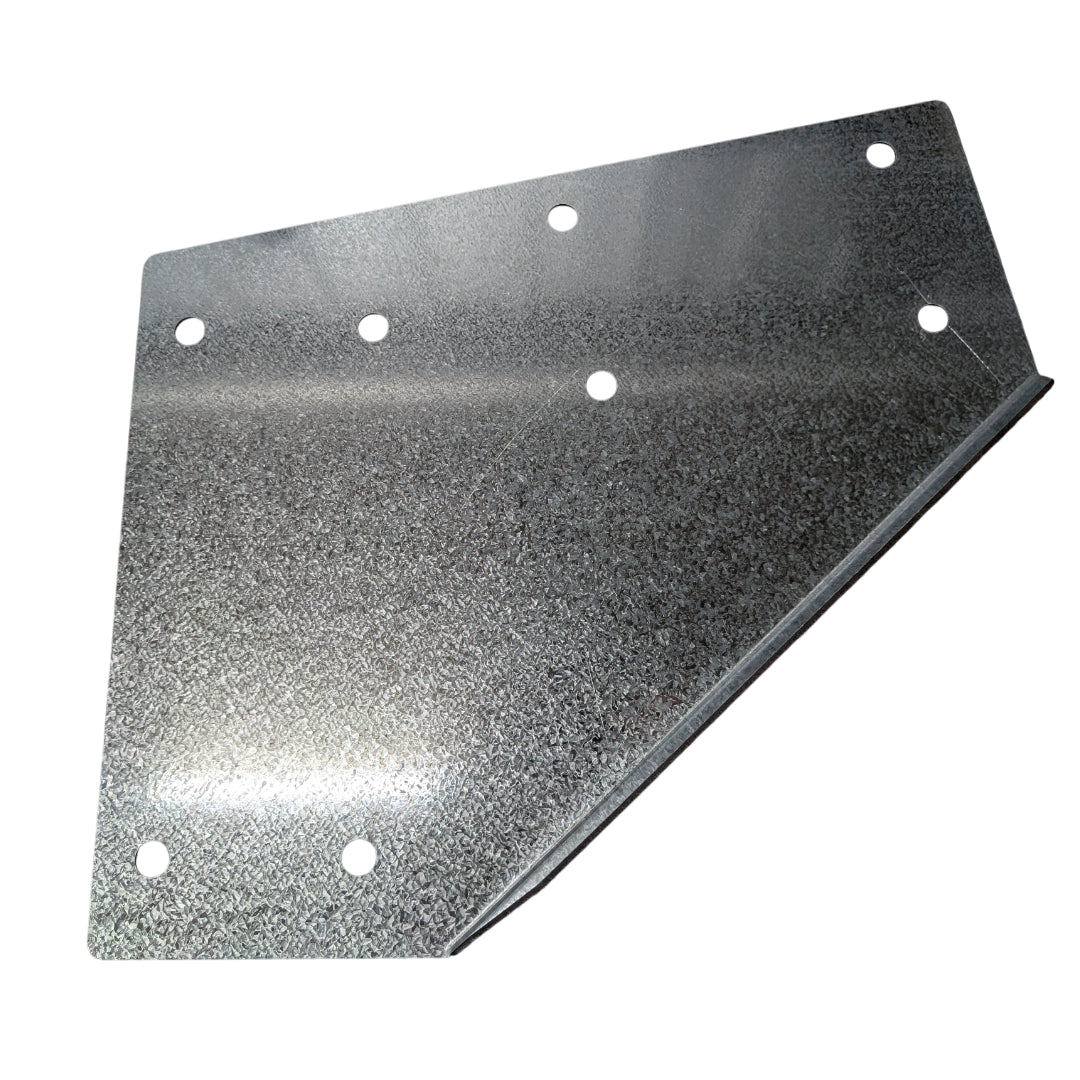

• C200 to C200

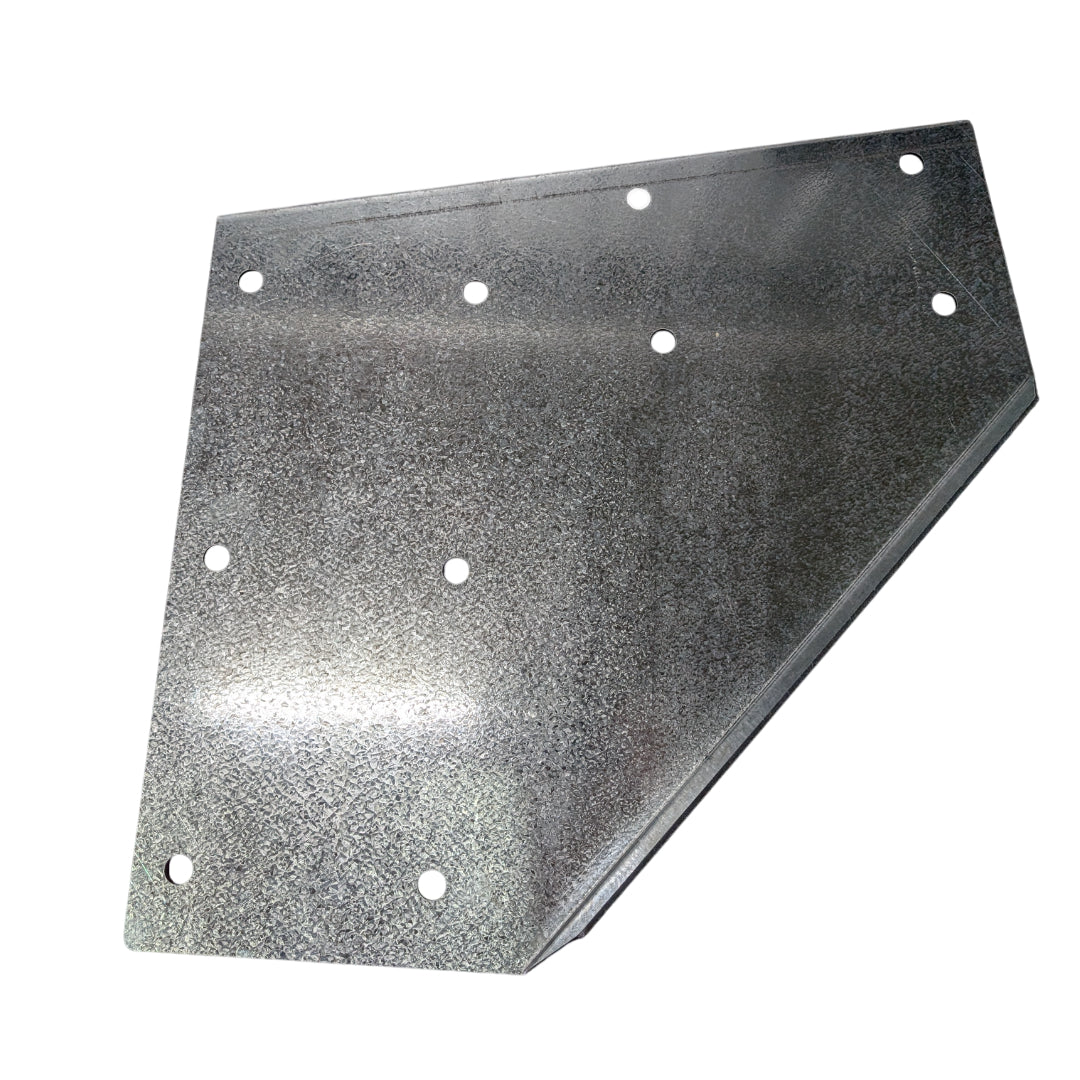

• C250 to C200
• Custom (Available upon request)

Roof Pitch

The default roof pitch that we manufacture is 11 degrees, however, we can manufacture other roof pitches if required. Please contact us if you require a different roof pitch from the standard available.

Standard Roof Pitches

• 11°
• 15°
• 22°
• Custom (available upon request)

Thickness

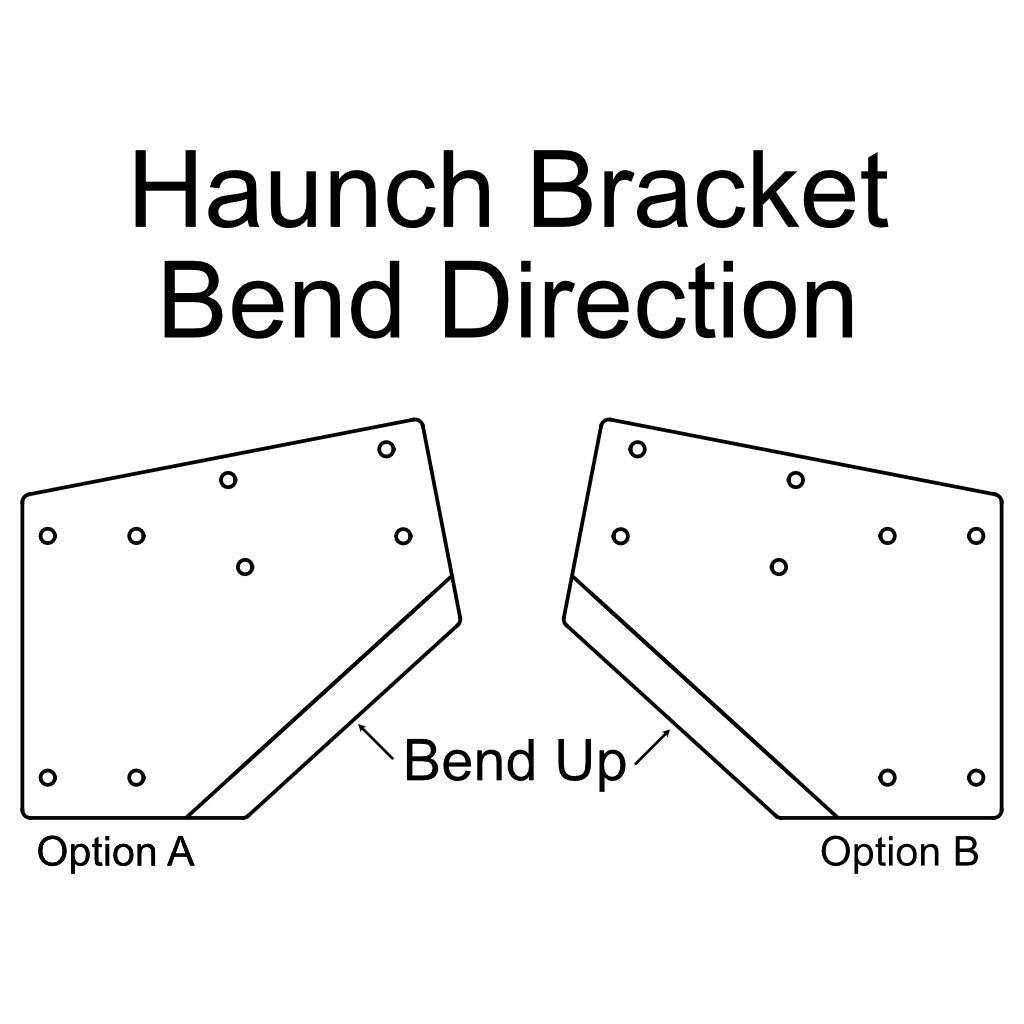

The apex brackets have a BTM (Base Metal Thickness) of 3.0mm, and are bent to provide extra strength (preventing flex).

Please contact us if you would like something different.

Fasternings

The brackets generally require 8 x M16 bolts (not included), 4 bolts for each purlin connection.

Pickup from Perth

The brackets can be picked up from our factory, see contact us page for location.
